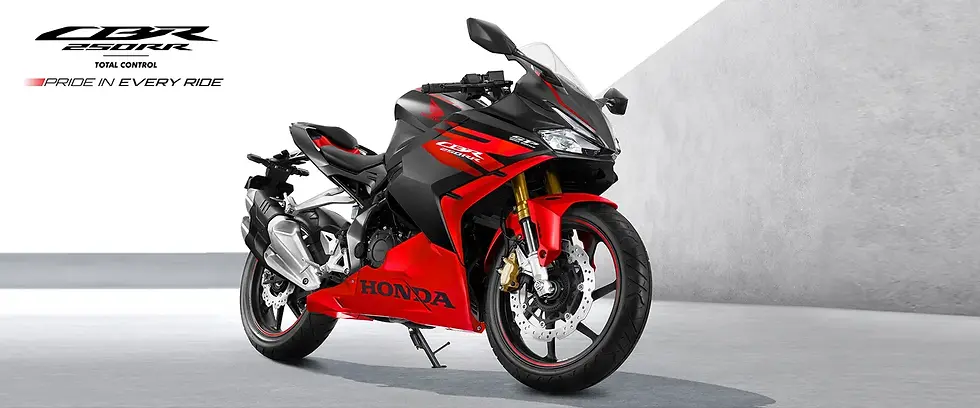

CBR250RR

Tipe Mesin4-Stroke, 8-Valve, Parallel Twin Cylinder

Kapasitas Mesin249.7 cc

Sistem Suplai Bahan BakarPGM-FI

Diameter X Langkah62,0 x 41,4 mm

Tipe TranmisiManual, 6 Speed

Rasio Kompresi11,5 : 1 (STD), 12,5 : 1 (SP | SPQS)

Daya Maksimum28,5 kW (38,7 PS) / 12.500 rpm (STD) 31 kW (42 PS)/13.000 rpm (SP | SP QS)

Torsi Maksimum23,3 Nm (2,4kgf.m)/11.000 rpm (STD) 25 Nm (2,5 kgf.m)/11.000 rpm (SP | SP QS)

Tipe StarterElectric

Tipe KoplingMultiple Wet Clutch with Coil Spring

Sistem Pendingin MesinLiquid Cooled With Auto Electric Fan

Pola Perpindahan Gigi1-N-2-3-4-5-6

Jenis PelumasWet (Pressing and Spray)

Kapasitas Oli1,9 L

Tipe RangkaDiamond (Truss) frame

Tipe Suspensi DepanInverted Telescopic Front Suspension

Tipe Suspensi BelakangAluminum Swing Arm (5 Adjustable Mono Suspension with Pro-Link System)

Ukuran Ban Depan110/70 – 17 54S (Tubeless)

Ukuran Ban Belakang140/70 – 17 66S (Tubeless)

Rem DepanHydraulic Disc, Dual Piston

Rem BelakangHydraulic Disc, Single Piston

Panjang X Lebar X Tinggi2.061 x 724 x 1.114 mm

Tinggi Tempat Duduk790 mm

Jarak Sumbu Roda1.385 mm

Jarak Terendah Ke Tanah148 mm

Curb Weight166 kg (STD), 168 kg (SP | SP QS)

Kapasitas Tangki14,5 liter

Tipe Baterai Atau AkiMF-Wet 12V – 7 Ah

Sistem PengapianFull Transisterized

Tipe BusiNGK SILMAR8C-9 (Iridium Spark Plug) (STD) NGK SILMAR8C-9 (Iridium Spark Plug) (SP | SP QS)

Kapasitas Tangki Bahan Bakar14,5 L

Kapasitas Minyak Pelumas1,9 L
